What to look for in a CNC machine

Choosing the right CNC machine is crucial for any entrepreneur or hobbyist looking to take their projects to the next level. Whether you’re just starting in the world of machining or aiming to upgrade your current setup, understanding the key factors to consider can make a significant difference in terms of precision, efficiency, and the quality of your creations.

In this guide, we’ll explore the essential features to look for in a CNC machine, focusing on aspects such as dimensions, spindle capabilities, controllers, and travel speed, helping you make an informed decision aligned with your needs and goals.

Parts of a CNC machine

Let’s take a look at what some of the most important features to look for in a CNC machine are.

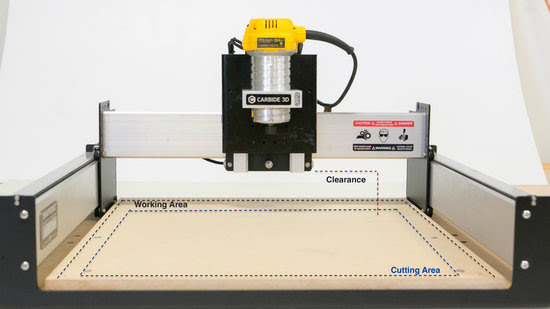

From the image it can be easily understood that there are three fundamental parts to consider:

• The Working Area
• The Cutting Area, and
• The Clearence

Cutting Area – Describes the maximum working area within the CNC machine. This is the largest piece of material the machine is capable of cutting.

Working Area – This could be describing how large of material you can place within the machine. Make note that this may (and probably will) be different than the cutting area. Where the cutting area describes the maximum area your machine can cut, the work envelope describes how large of a piece you can place within the machine.

Clearance – This is the distance between the wasteboard and the lowest point on the gantry (usually the bottom of the Z-axis.). Clearance describes how much height you have to work with, you’ll need height for things like really thick material and space to clear clamping (like a vice). The more clearance, the better!

Is it there anything else to consider?

Aside from common sense characteristics, like reputable vendor, good reviews, and great support, finding the right CNC machine depends largly on determining your budget and requirements for the machine and buying what works best for you.

When looking at the technical specs of any given machine, keep the following bullet points in mind:

• Footprint – This is how much space the machine will take up on your bench, desk, or table.
• Spindle – Pay special attention to the spindles max RPM and max torque. Make sure it can accept and handle 1/4″ shank end mills if you’re going to do any sort of serious cutting.
• Controller – Be careful, a lot of CNC machines dont ship with a controller! You’ll need a controller to connect your computer to your CNC machine and to make it move.
• Displacement velocity refers to the speed at which the machine’s cutting head (or tool) moves across the material being machined. This speed is critical for determining how quickly and efficiently the machine can perform operations like cutting, milling, or engraving. It affects the overall productivity of the machine and the quality of the finished product. The displacement velocity is typically measured in units such as inches per minute (IPM) or millimeters per minute (mm/min). Higher displacement velocities can result in faster production times, but they must be balanced with the capabilities of the machine and the nature of the material to avoid compromising precision and quality.
• Software – Most machines ship with no software at all! You’ll need machine control software, CAD Software, and CAM software if you want to fully working machine. We will talk a lot about Fusion 360 and Match3 in this blog, Stay updated!

Selecting the perfect CNC machine can seem overwhelming, but with the right knowledge and a clear understanding of your objectives, you can find the ideal tool to elevate your projects. Pay close attention to the aspects discussed in this guide, including machine dimensions, spindle power, controller functionality, and travel speed. With the right machine, you’ll be well on your way to transforming your ideas into reality, optimizing your workflow, and achieving success in your CNC ventures.

Final Greetings:

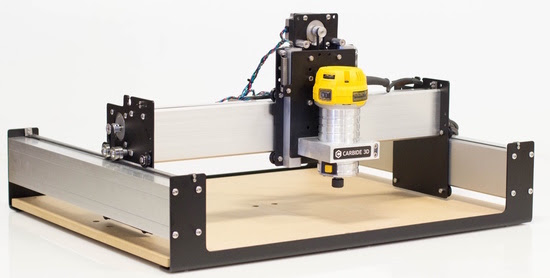

The machine captured for this post is a Shapeoko form Carbide 3D. If you know that Shapeoko is right for you, head over to their store and pick one up today! If you’re looking for a more turn key solution that looks gorgeous inside a studio or small office, take a look at Carbide 3D other CNC machine, the Nomad883 Pro.
